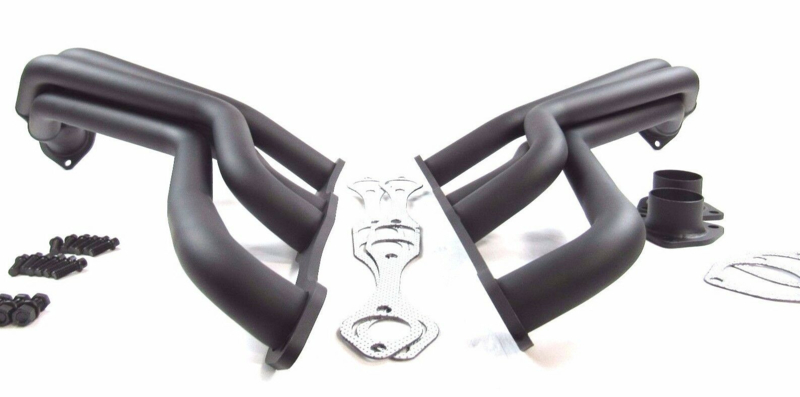

1935-1948 SBC Chevy 283-350 Fat Fenderwell Header Black
Part Number: 100-1014
1935-1948 SBC Chevy 283-350 Fat Fenderwell Header Black
- Primary Tube Diameter: 1-5/8" = 41.27 mm
- Collector Diameter: 2-1/2" = 63.50 mm
- Header Flange Type: Round Port
- Gasket Ports: 1-7/8" x 1-3/8" = 47.62 x 34.92 mm
- Base of flange to bottom of collector is 9" = 228.6 mm
- At approximately 6" from flange at 2nd bend, there is about 2" of drop from flange
- At approximately 15" from flange at 3rd bend, there is about 4" of drop from flange
- Collector flange is angled
- Made from 18 gauge tubing
- Reducers are 2.50" to 2.25"
